Product Description:

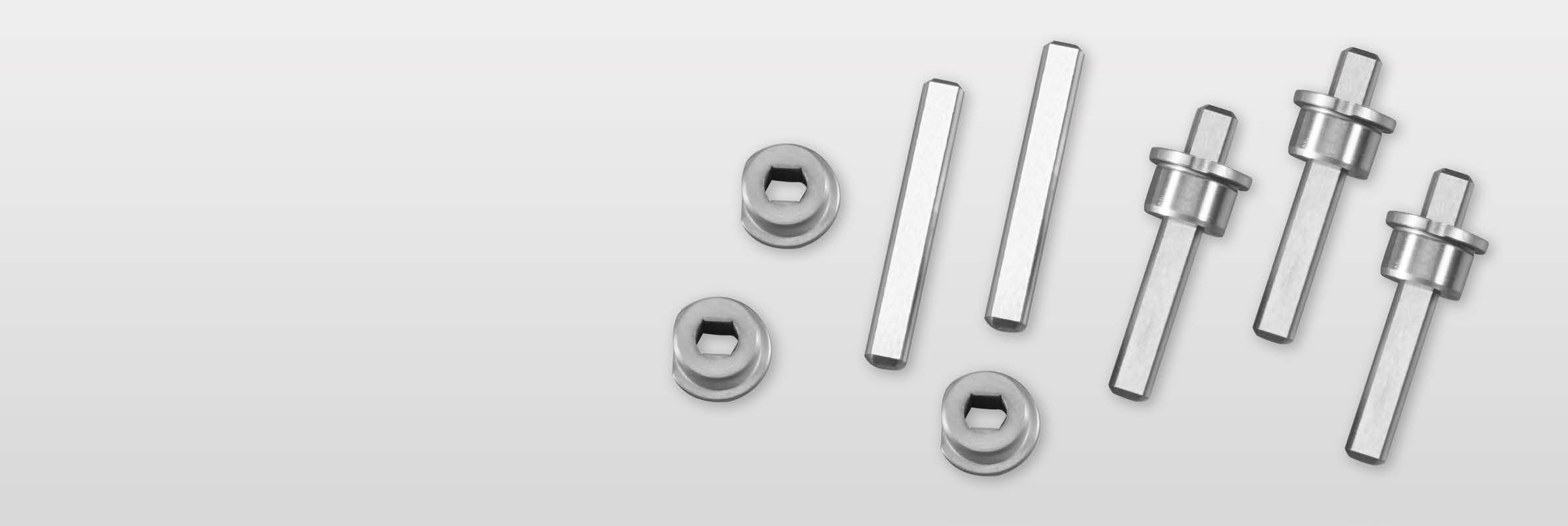

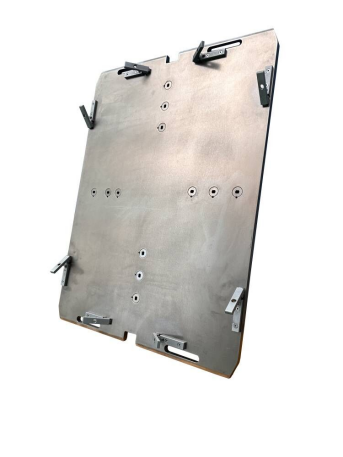

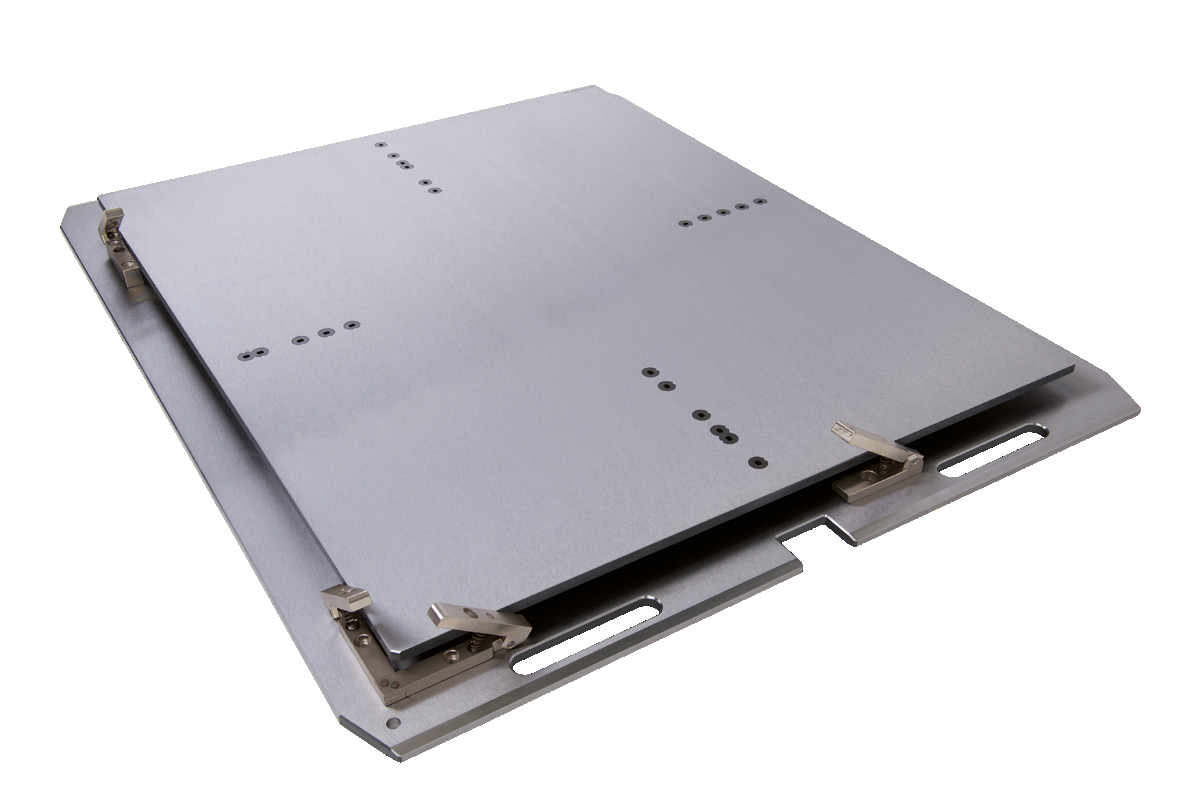

Ensure flawless layer-to-layer registration and eliminate misalignment in your multilayer PCB lamination process with our high-precision Tooling Pins and Bushings. Designed specifically for the rigorous demands of PCB lamination presses, this robust alignment system is engineered for carrier plates and press plates to guarantee perfect alignment of every layer, from inner cores to prepreg and copper foil.

Crafted from high-grade, heat-treated tool steel with optional stainless steel versions, our pins and bushings withstand extreme temperatures, high pressure, and continuous cycling without warping or wearing. They are the critical foundation for achieving zero-defect lamination in the production of high-density interconnect (HDI), rigid, and rigid-flex PCBs.

Key Features & Benefits:

• Precision Alignment: Guarantees exact layer-to-layer registration, critical for multilayer PCB lamination and preventing costly misregistration defects.

• High-Temperature Resistance: Manufactured from materials that maintain dimensional stability under the high heat and pressure of the lamination press cycle.

• Exceptional Durability & Wear Resistance: Hardened surfaces significantly reduce wear, extending the service life of both the pins and bushings, and minimizing downtime and replacement costs.

• Smooth Engagement: Precisely machined tapered ends allow for easy and damage-free insertion into bushings, protecting your valuable carrier plates and laminate materials.

• Optimized for Lamination Presses: Designed to perform reliably in the specific environment of PCB lamination, resisting resin bleed and cleaning solvents.

• Improved Yield & Reduced Scrap: By ensuring perfect alignment every time, our tooling system directly contributes to higher production yields and lower scrap rates.

Primary Applications:

• Multilayer PCB Lamination Process

• Lamination Press Carrier Plate Fixturing

• HDI (High-Density Interconnect) PCB Manufacturing

• Rigid-Flex PCB Pressing

• Assembly and Test Fixtures requiring high-precision alignment
