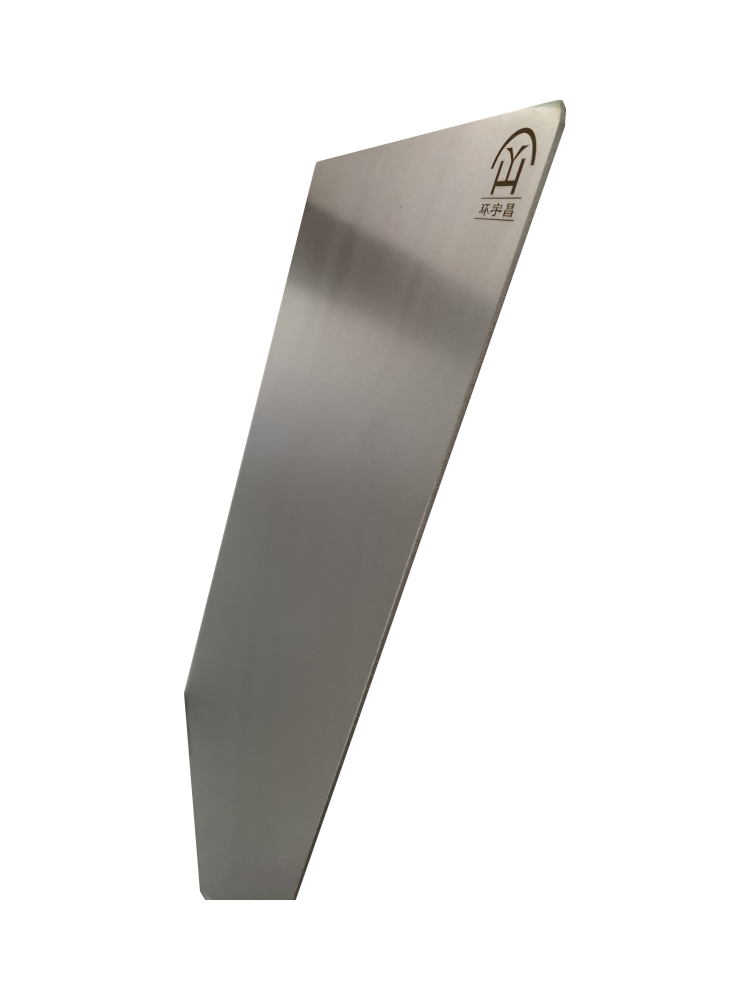

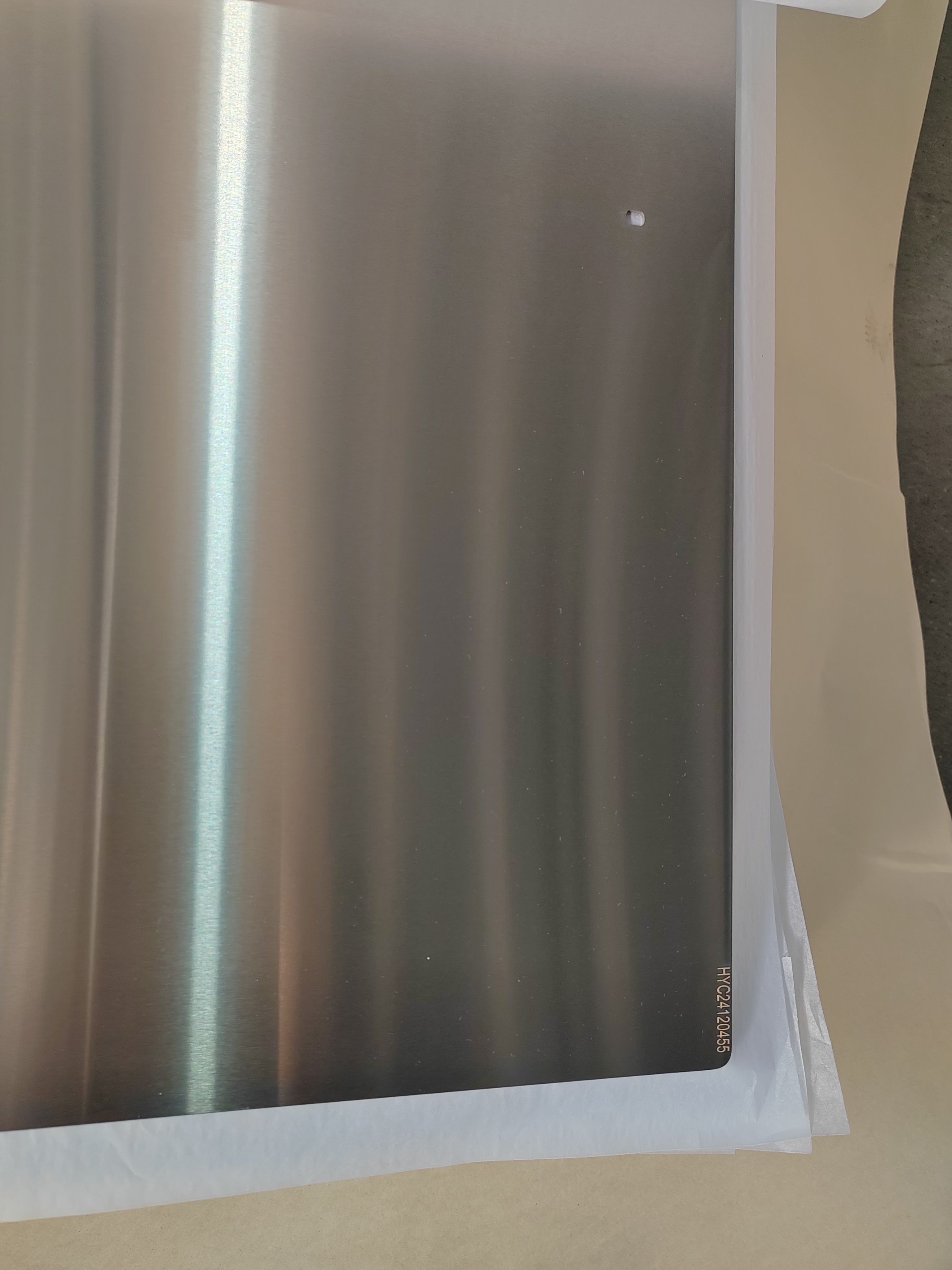

Flexible Circuit Separator Plate – NAS301 Material
Flexible Circuit Separator Plate – NAS301 Material
1. Product Features
The NAS301 steel plate has excellent corrosion resistance to a variety of chemicals, enabling it to maintain its performance in harsh chemical environments and is suitable for laminated structures used in corrosive environments.
The NAS301 steel plate has excellent anti - aging properties, enabling it to maintain its physical and chemical properties over a long period, extending the service life of the laminated structure.
The NAS301 steel plate can form a strong bond with a variety of materials, ensuring the integrity and strength of the laminated structure.
During the lamination process, the NAS301 steel plate can form a uniform bonding layer, reducing the generation of bubbles and defects and improving the quality of the laminated structure.
The NAS301 steel plate has excellent electrical insulation properties and is suitable for use as an insulating layer in electronic and electrical equipment, ensuring the safety and reliability of the equipment.
The NAS301 steel plate has low VOC emissions during production and use, meeting environmental protection requirements and is suitable for applications with strict environmental protection requirements.
The NAS301 steel plate is easy to cut, shape, and process, capable of meeting the design requirements of complex laminated structures and improving production efficiency and product quality.
2.Specification
|
project |
NAS301 |
|
|
Mass-Lam |
Pin-Lam |
|
|
Thickness |
1.0~1.8mm |
1.0~1.8mm |
|
Width |
≦1060mm |
≦1060mm |
|
Length |
≦3150mm |
≦3150mm |
|
Plate thickness tolerance |
±0.05mm |
±0.05mm |
|
Roughness |
Ra≦0.15㎛ Rz≦1.5㎛ |
Ra≦0.15㎛ Rz≦1.5㎛ |
|
Hole-to-hole tolerances for positioning holes |
-- |
+0.1/-0mm |
|
Standard bushing slot hole tolerances |
-- |
+0.05/-0mm |
|
Warpage degree |
≦3mm/m |
≦3mm/m |
|
Dimension tolerances |
-0/+1mm |
-0/+1mm |
|
Endurance |
≧205（N/mm²） |
≧205（N/mm²） |
|
Tensile strength |
≧520（N/mm²） |
≧520（N/mm²） |
|
Extensionality |
≧40% |
≧40% |
|
Hardness ( HRC ) |
44±2 |
44±2 |
3.Chemical Composition（%）
|
Type |
C |
Si |
Mn |
Ni |
Cr |
Mo |
Cu |
other |
|
NAS301 |
≦0.15 |
≦1 |
≦2 |
6~8 |
16~18 |
- |
- |
- |
4.Physical Property
|
Steel plate type |
Project |
Scope of application |
Standard value |
|
NAS301 |
specific gravity |
- |
8.03 |
|
mean coefficient of thermal expansion （10-6/℃） |
0-400℃ |
15~17 |
5.Thermal Conductivity
|
Steel plate type |
bench markW/（m*k） |
0-200℃ |
200-400℃ |
|
NAS301 |
17~21 |
17 |
21 |
