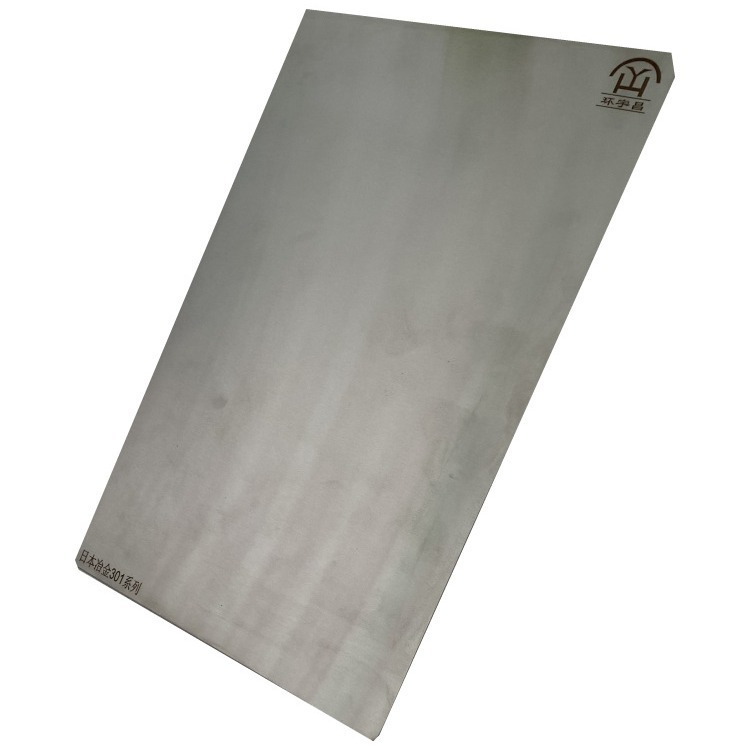

NAS603 Steel Separator Plate for Solar Panel Lamination
NAS603 Steel Separator Plate for Solar Panel Lamination
1. Product Features
· Excellent heat resistance: NAS630 steel plate usually contains high - heat - resistant resins (such as epoxy resin or polyimide) and reinforcing materials (such as glass fiber or carbon fiber). During the lamination process, the NAS630 steel plate can withstand high - temperature environments, is not prone to deformation or degradation, ensuring the stability and reliability of the laminated structure.
· During the lamination process, the NAS630 steel plate can reduce dimensional changes caused by temperature variations, avoid stress concentration between laminated materials, and improve the dimensional stability and reliability of the product.
· The resin matrix and reinforcing materials of NAS630 steel plate have excellent chemical corrosion resistance. During the lamination process, the NAS630 steel plate can resist the erosion of chemicals such as acids, alkalis, and solvents, ensuring the long - term stability of the laminated material in harsh environments.
· NAS630 steel plate uses lightweight reinforcing materials (such as carbon fiber or aramid fiber). During the lamination process, the NAS630 steel plate can achieve lightweight design, reducing the weight of the final product while maintaining high strength and high rigidity, making it suitable for weight - sensitive application fields such as aerospace and automotive.
· The resin matrix and reinforcing materials of NAS630 steel plate have high fatigue resistance. During the lamination process, the NAS630 steel plate can withstand repeated stress cycles, avoid the failure of the laminated structure due to fatigue, and extend the service life of the product.
2.Specification
|
project |
NAS630 |
|
|
Mass-Lam |
Pin-Lam |
|
|
Thickness |
1.0~2.5mm |
1.0~2.5mm |
|
Width |
≦1300mm |
≦1300mm |
|
Length |
≦2410mm |
≦2410mm |
|
Plate thickness tolerance |
±0.05mm |
±0.05mm |
|
Roughness |
Ra≦0.15㎛ Rz≦1.5㎛ |
Ra≦0.15㎛ Rz≦1.5㎛ |
|
Hole-to-hole tolerances for positioning holes |
-- |
+0.1/-0mm |
|
Standard bushing slot hole tolerances |
-- |
+0.05/-0mm |
|
Warpage degree |
≦3mm/m |
≦3mm/m |
|
Dimension tolerances |
-0/+1mm |
-0/+1mm |
|
Endurance |
≧1175（N/mm²） |
≧1175（N/mm²） |
|
Tensile strength |
≧1400（N/mm²） |
≧1400（N/mm²） |
|
Extensionality |
≧5% |
≧5% |
|
Hardness ( HRC ) |
50±2 |
50±2 |
3.Chemical Composition（%）
|
Type |
C |
Si |
Mn |
Ni |
Cr |
Mo |
Cu |
other |
|
NAS630 |
≦0.07 |
≦1 |
≦1 |
3~5 |
15~17.5 |
- |
3~5 |
Nb0.15~0.45 |
|
NAS301 |
≦0.15 |
≦1 |
≦2 |
6~8 |
16~18 |
- |
- |
- |
4.Physical Property
|
Steel plate type |
Project |
Scope of application |
Standard value |
|
NAS630 |
specific gravity |
- |
8.03 |
|
mean coefficient of thermal expansion （10-6/℃） |
0-400℃ |
10~12 |
5.Thermal Conductivity
|
Steel plate type |
bench markW/（m*k） |
0-200℃ |
200-400℃ |
|
NAS630 |
18~23 |
18 |
23 |
